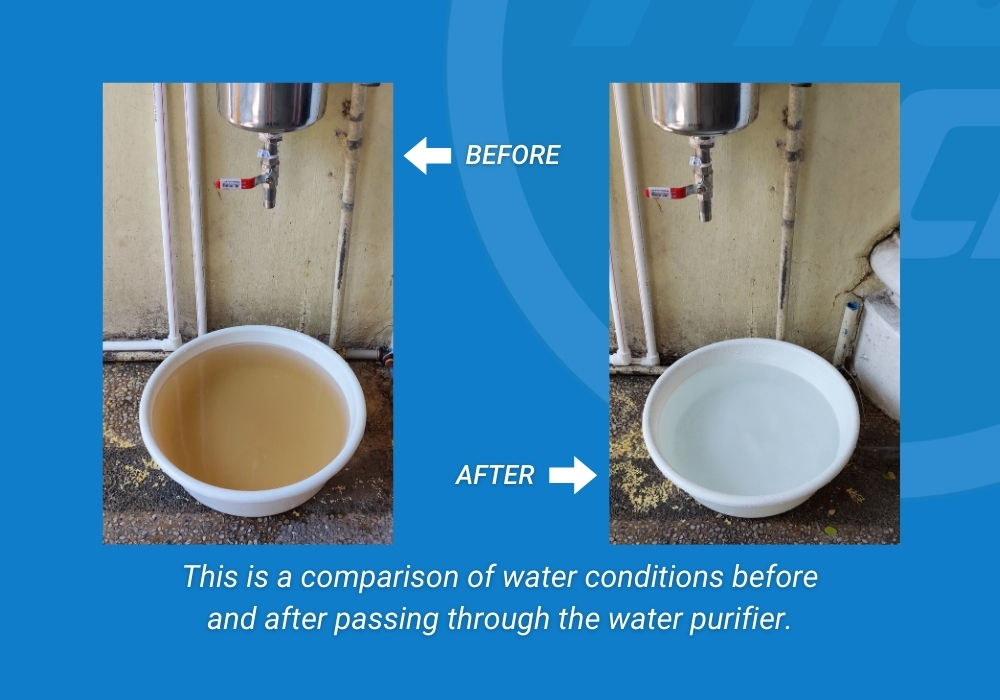

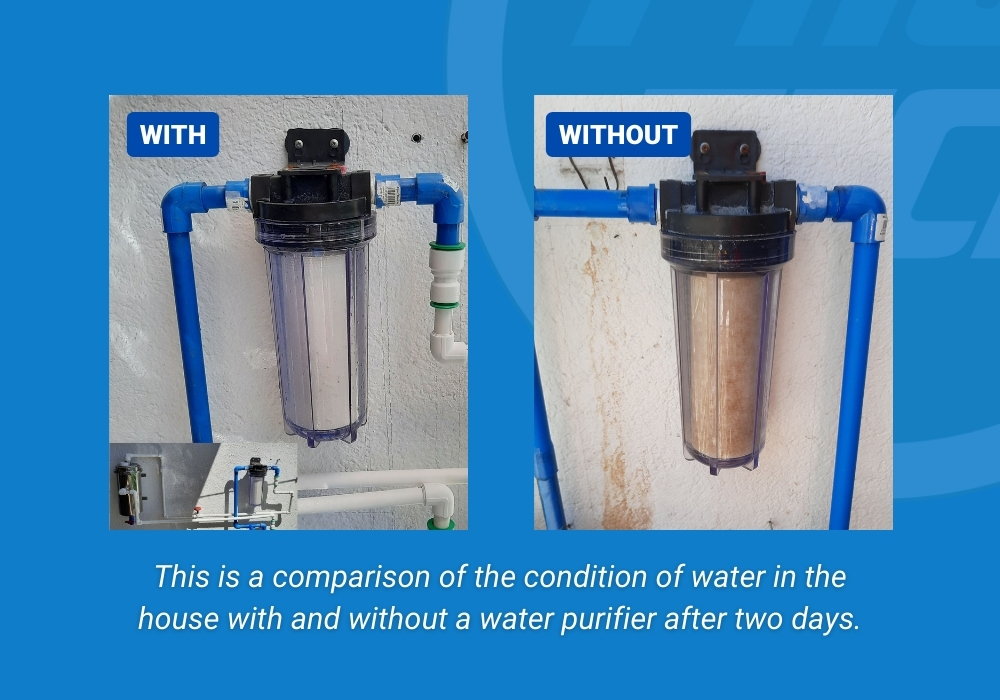

Comparison Photos
After installing the water purifier, check the comparison photos for the expected effects.
PVDF Water Purifier
Have you ever imagined that the current state of the water you're using could be like this?
- The state of water used in actual Filipino households is as severe as what you see on the screen.
- If this kind of water is used directly in a drinking water purifier, the primary sediment filter will get clogged or fail to function properly.
- The 2nd, 3rd, and 4th filters will also be unable to perform effective filtration.
- Even if you install as many as 10 sediment filters, particles smaller than the pores of the sediment filter will still cause the final filter to become red and contaminated.
- This is only a matter of time, and it means that simply using sediment filters with a precision of 1 to 5 microns is not enough to create an effective pre-treatment process.
- It is strongly recommended to use the PVDF water purifier we introduce to thoroughly clean the source water before supplying it to the drinking water purifier.
Ultra Filtration
WHP-3000
High-Precision Filtration - 0.01 ¥ìm
Effectively filter and intercept impurities in water ensure water safety.
Comparison of PVDF and Ordinary Sediment Filter
Sediment filters alone cannot effectively purify raw water.
- A 1-5 micron sediment filter alone is insufficient to effectively purify the water supplied to households in the Philippines.
- For reference, the sediment filter used in this test has a precision of 1 micron.
- The primary sediment filter used in drinking water purifiers is 5 microns.
- We recommend addressing the raw water treatment issues before using the drinking water purifier.
Features
Our water purifiers don't just make water clean, they remove all the harmful substances in the water and turn it into water that's completely harmless to the human body.
High-Precision Filtration
A water purifier with 0.01 ¥ìm filtration capability filters out even microscopic things such as viruses.
Easy to Disassemble
No tools are required, the membrane filter can be removed for cleaning by unscrewing the handle with one hand.
Washable
The membrane filter can be washable and repeatedly used, longer life, and is much more durable than the old type model.
No Electricity needed
It is a water purifier that does not require electric power.
Large Flow
It provides enough flow for the entire family to use at the same time.
304 Stainless Steel
304 food-grade stainless steel is used for safety.
Product Information
WHP-3000
Water Purifying System
Ultra Filtration System (0.01 µm)
Purpose
WHP-3000 : For Residential
Product Size (mm)
WHP-3000 : 208(D)x398(H)
Max Flow
WHP-3000 : 3,000 liter/hour
Thread Size
WHP-3000 : 1 inch
Required Pressure & Temp
14.5 ~ 43.5 psi / 5 ~ 45¡ÆC
VIDEO
You can watch videos of information about PVDF Water Purifier.
Before Purifying
- When you open the drain valve of the WHP-3000 PVDF raw water treatment purifier,
- As shown in the video, you can observe that water containing many impurities, which have not passed through the filter, is discharged.
- The water discharged from the drain valve is best used for purposes such as garden maintenance or car washing.
- This helps prevent clogging of the filter and regulates the pressure applied to it.
After Purifying
- The water that passes through the WHP-3000 PVDF raw water treatment purifier,
- As seen in the video, is transparent and clean, resembling crystal.
Comparison of PVDF and PVC
- It is essential to thoroughly inspect the low-quality PVC filters available on the market before use.
- PVC filters are prone to significant damage during cleaning.
- Unlike PVDF filters, they are not suitable for long-term use.
Gallery
Touch the image to view the enlarged one.

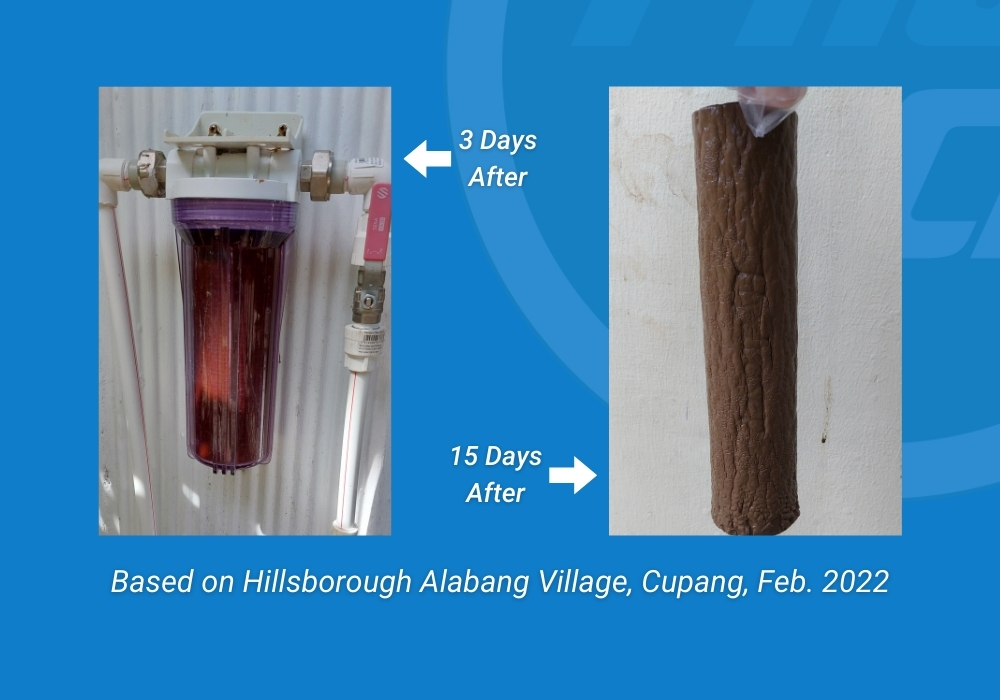

Water Quality
Making the water supplied to a house clean with only a 5 ¥ìm sediment filter is disadvantageous in terms of cost and management. Above all, it is impossible to filter out all the fine substances that come in.

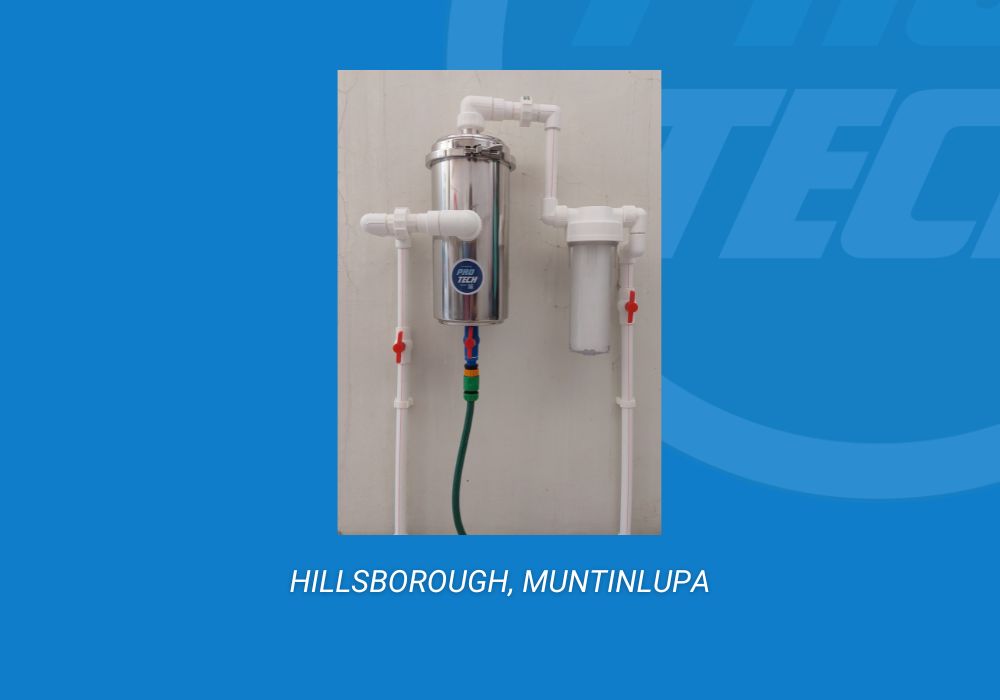

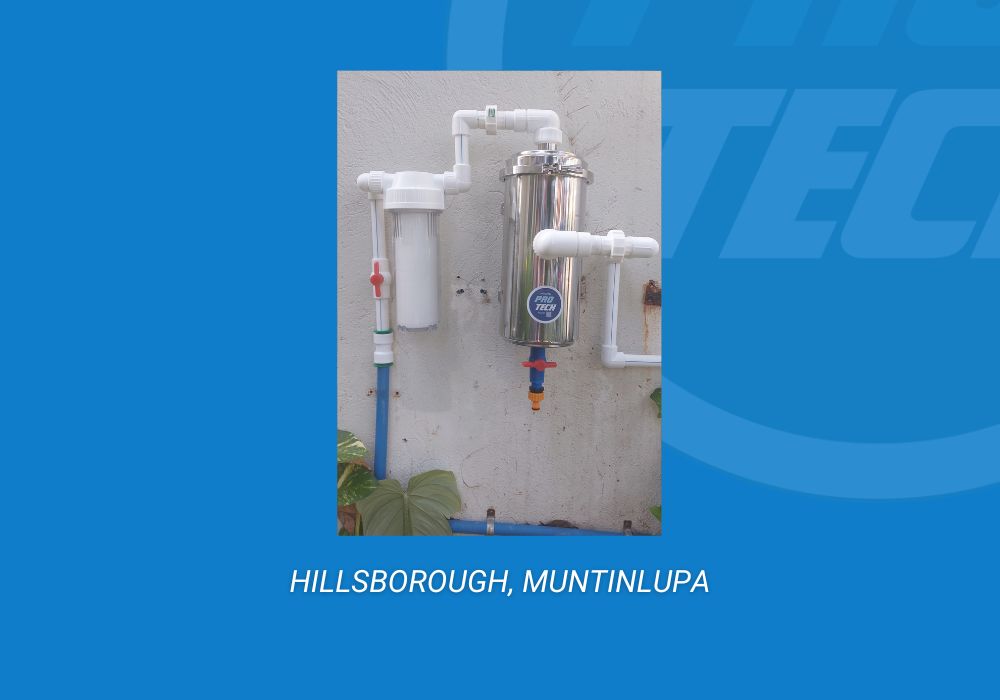

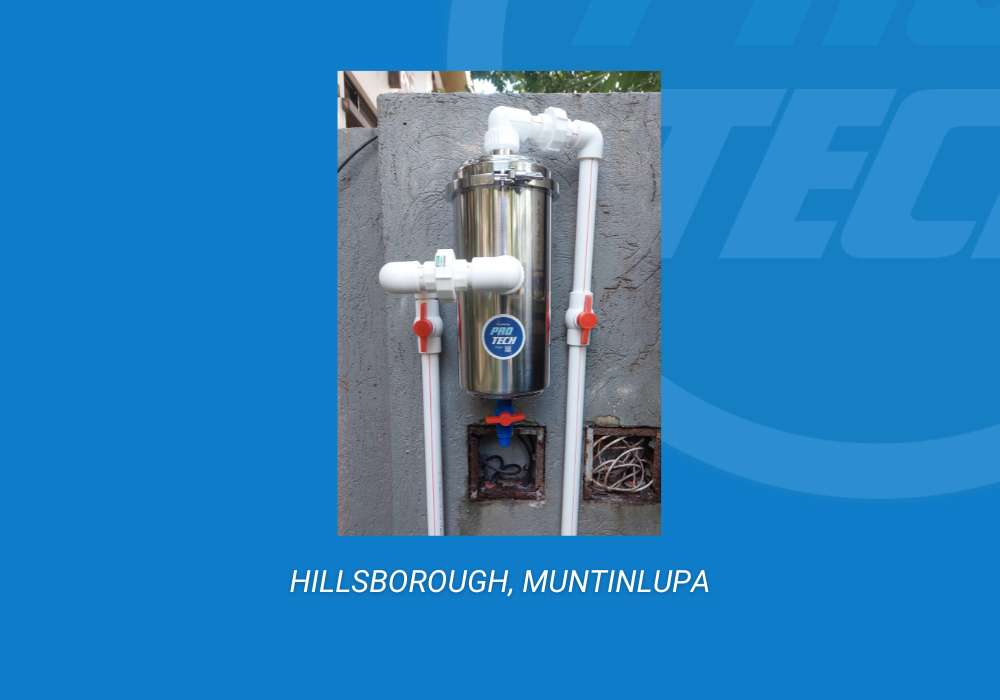

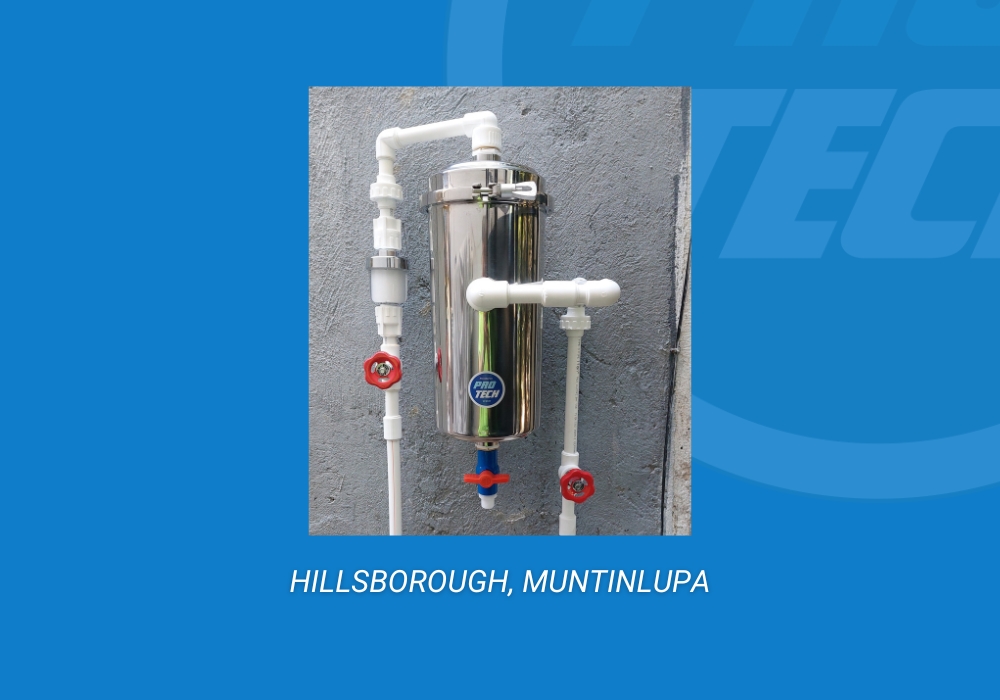

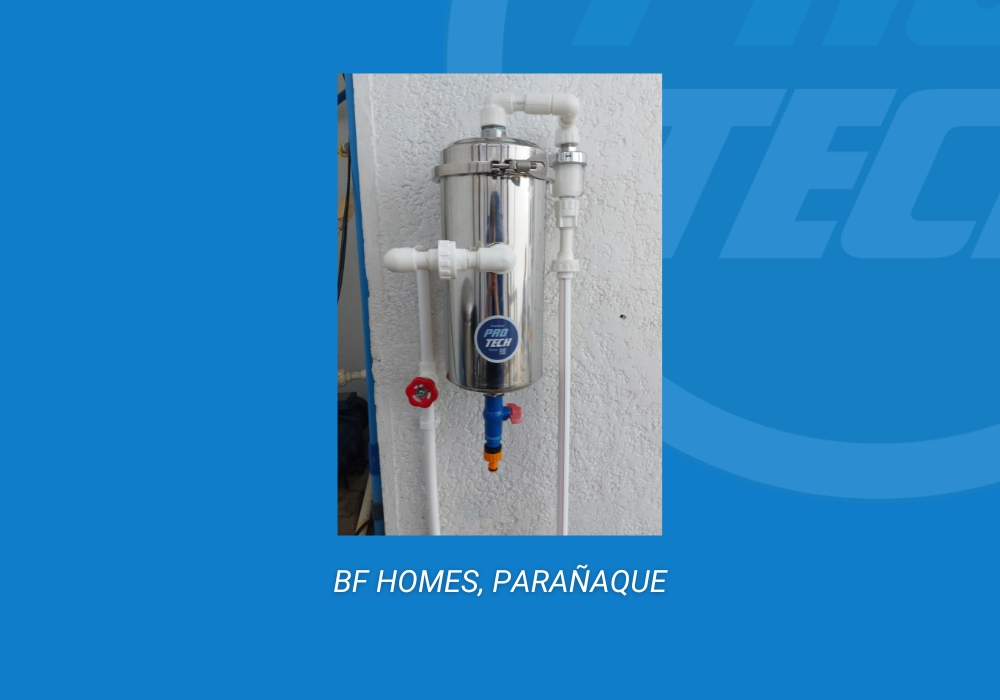

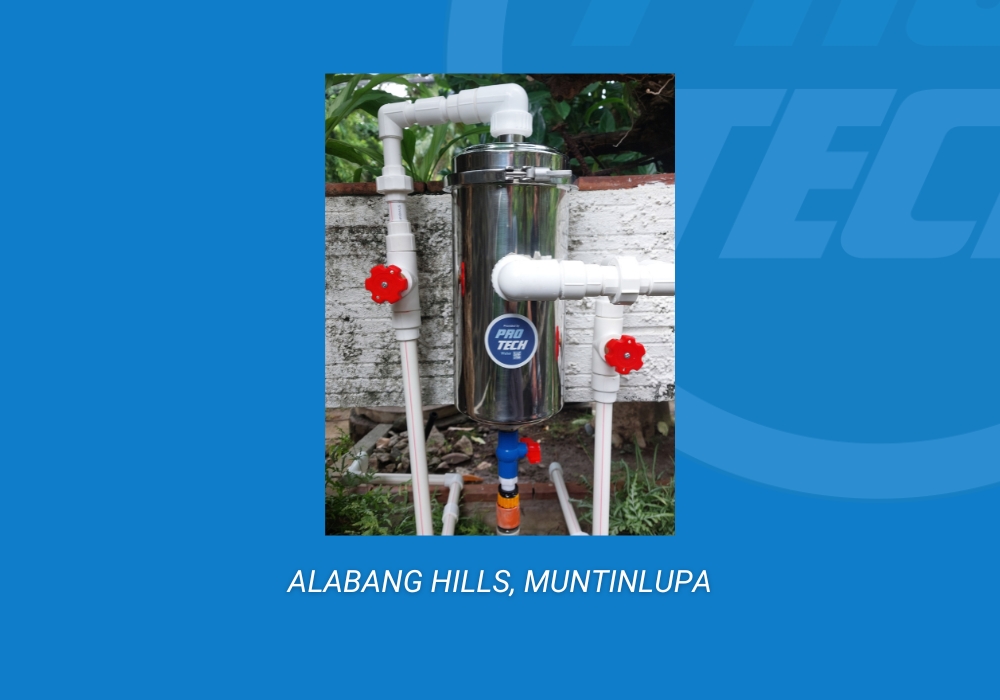

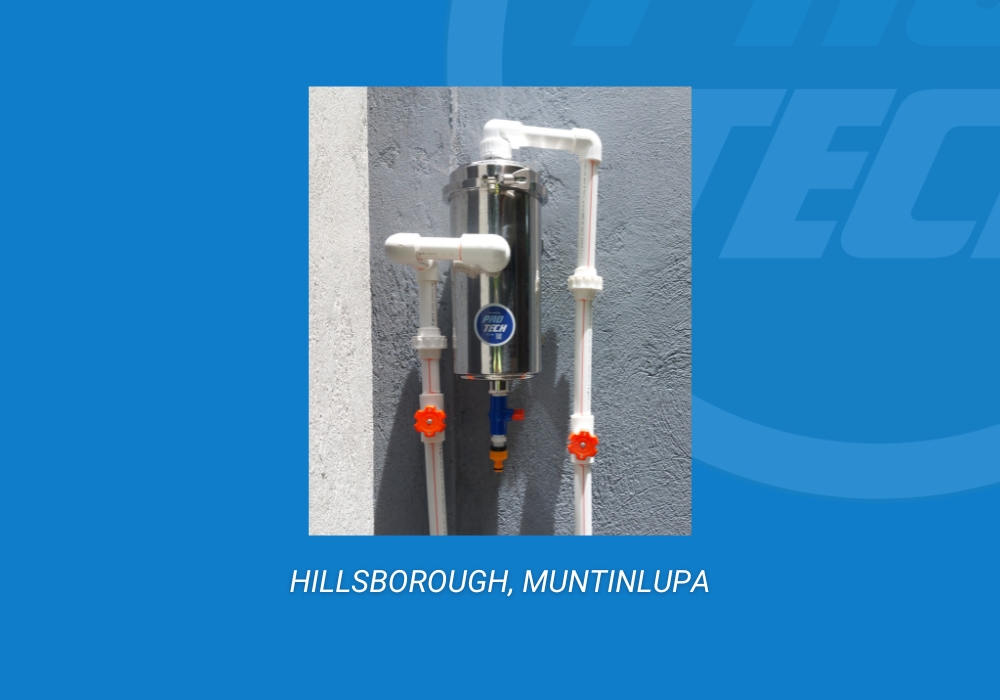

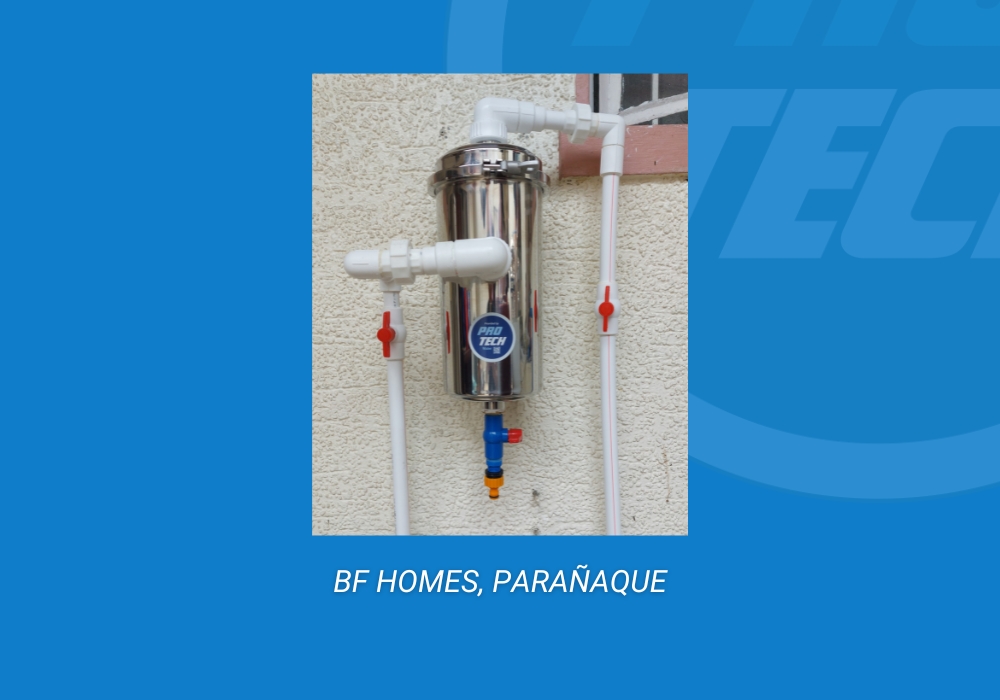

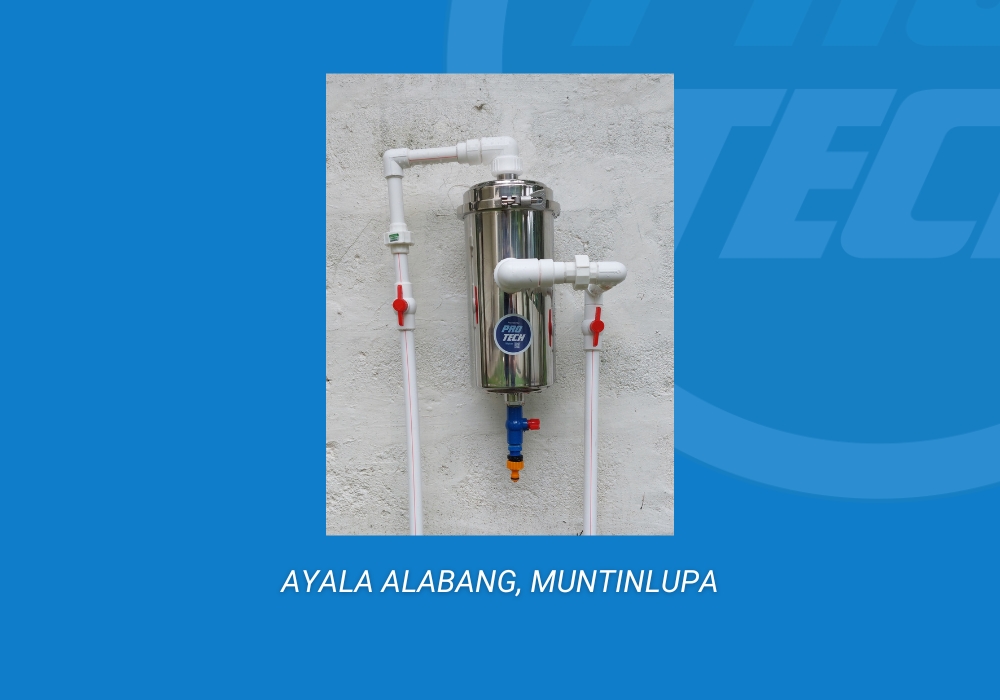

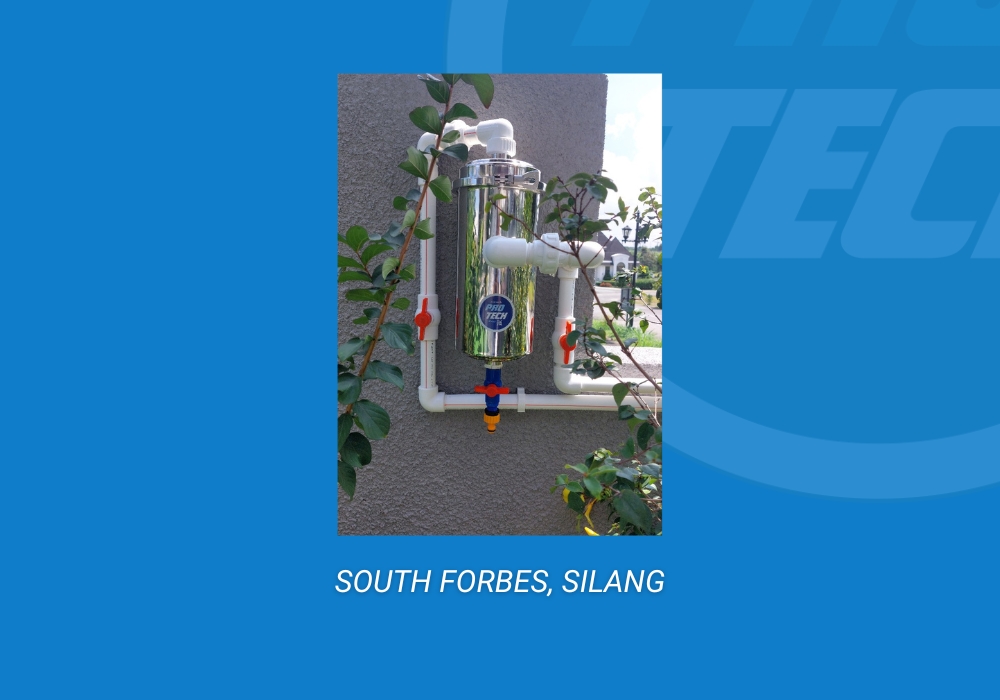

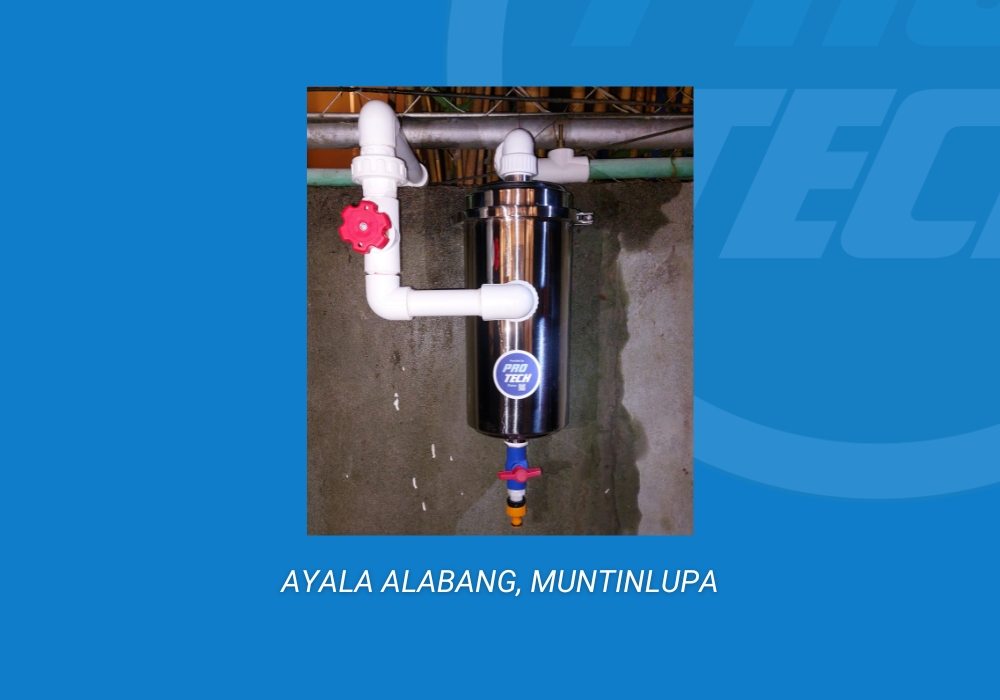

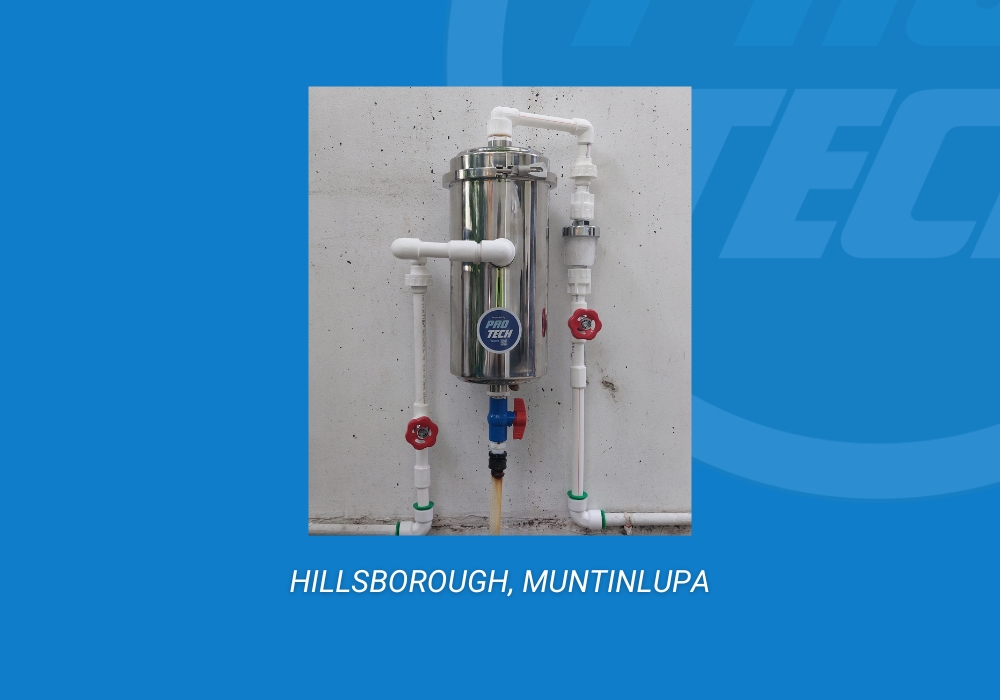

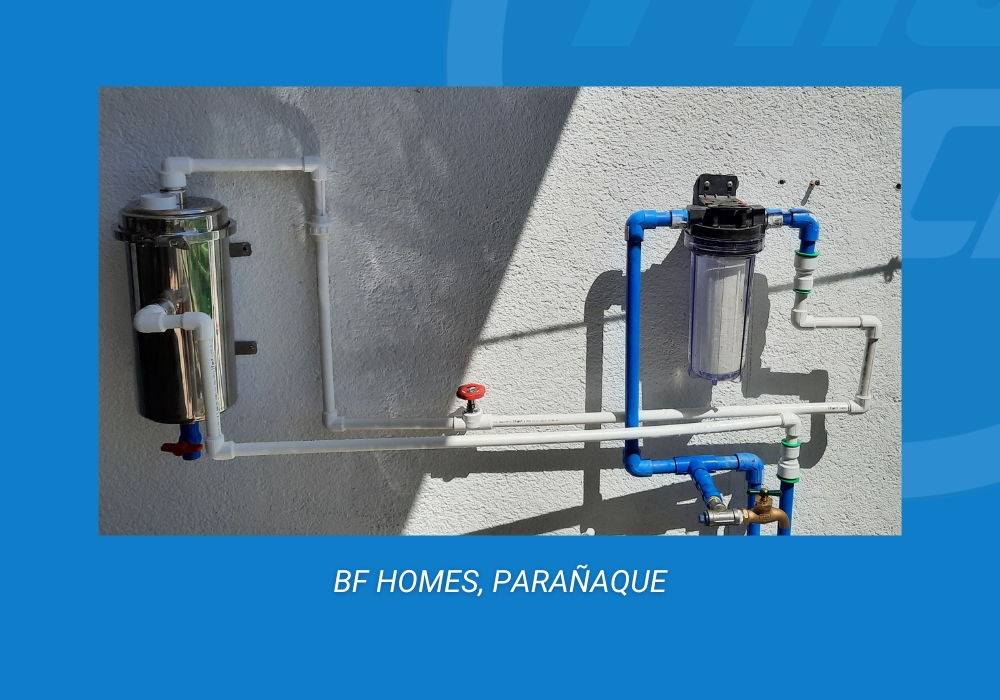

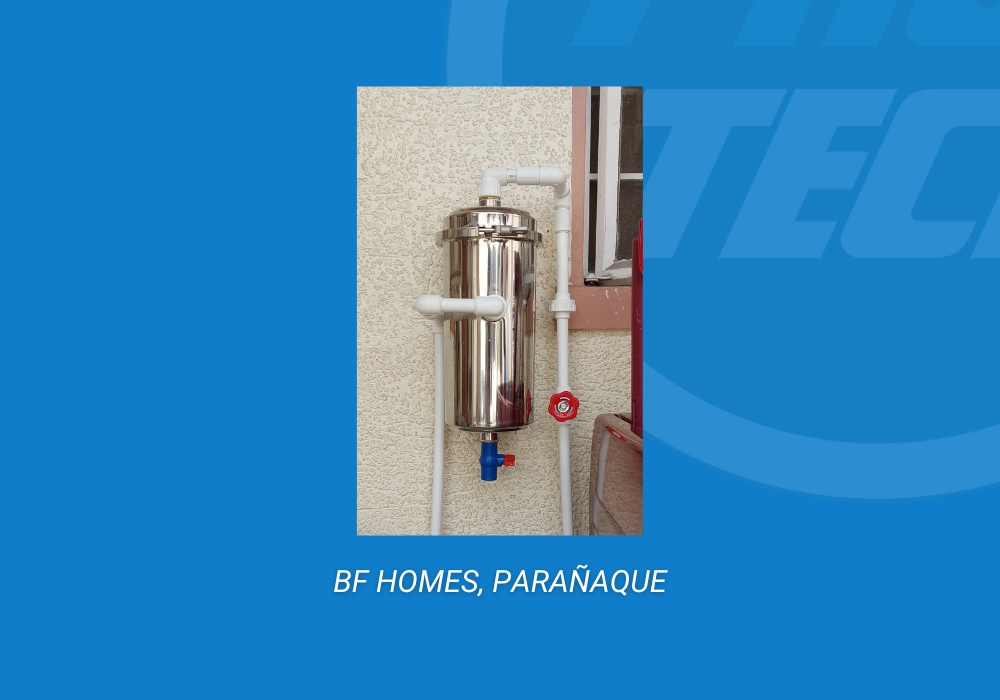

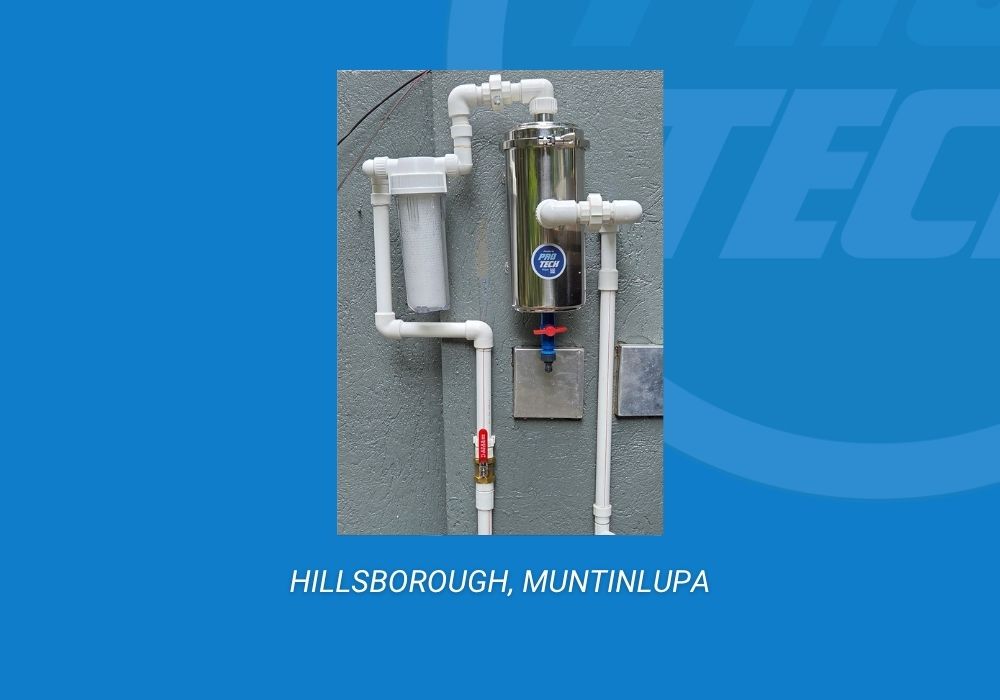

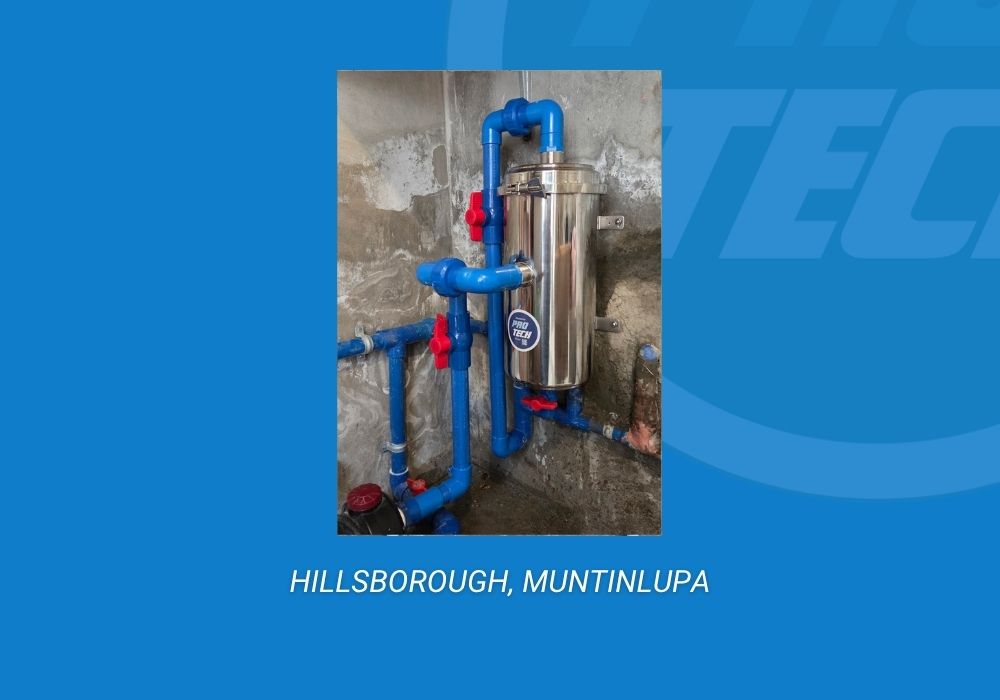

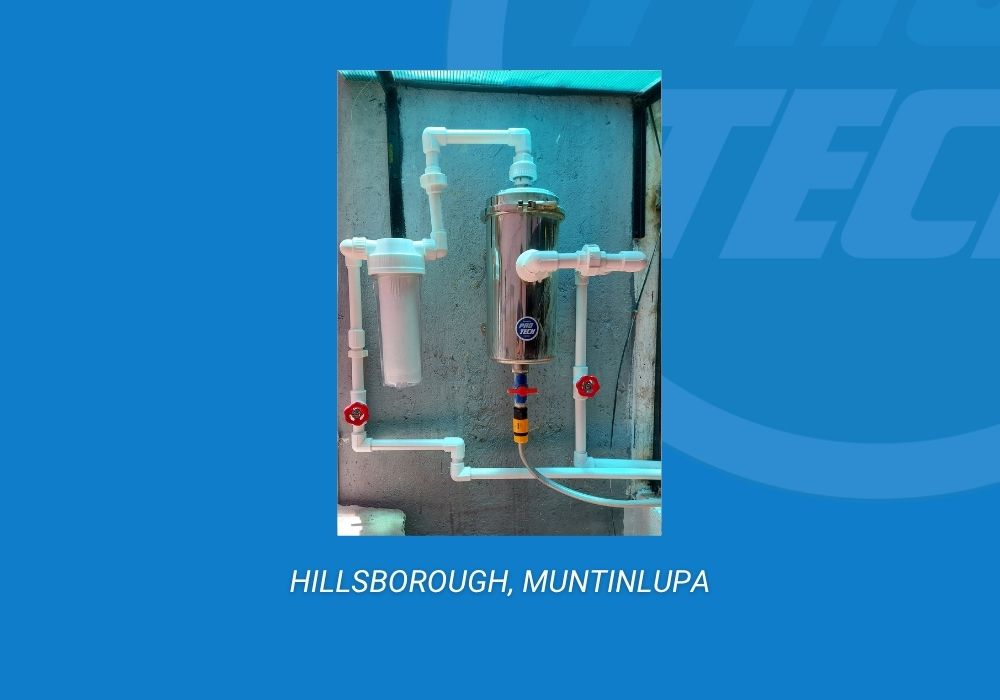

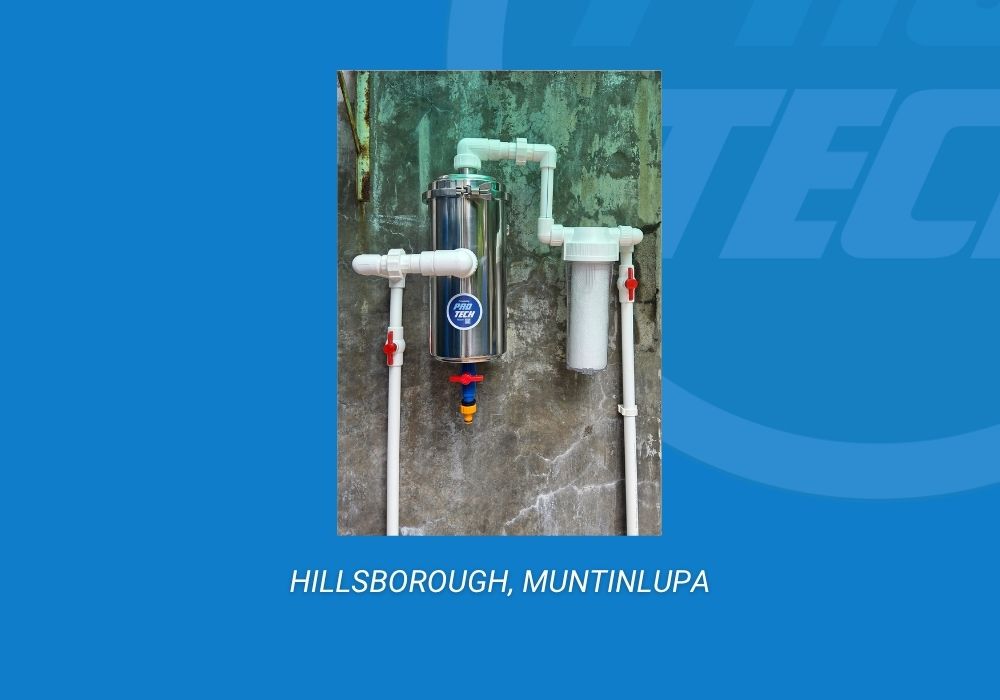

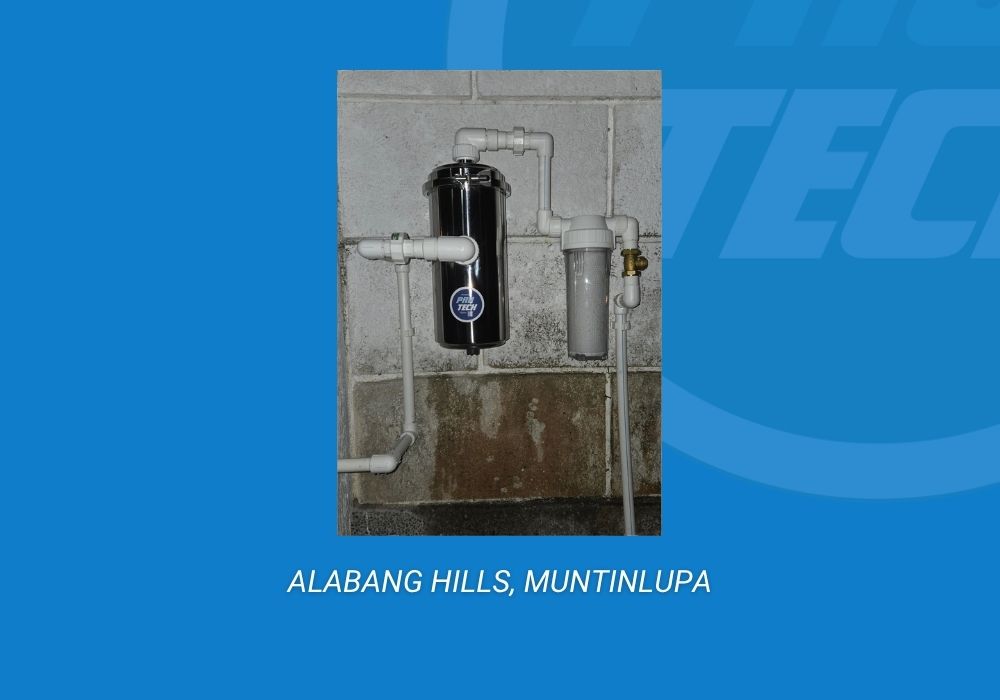

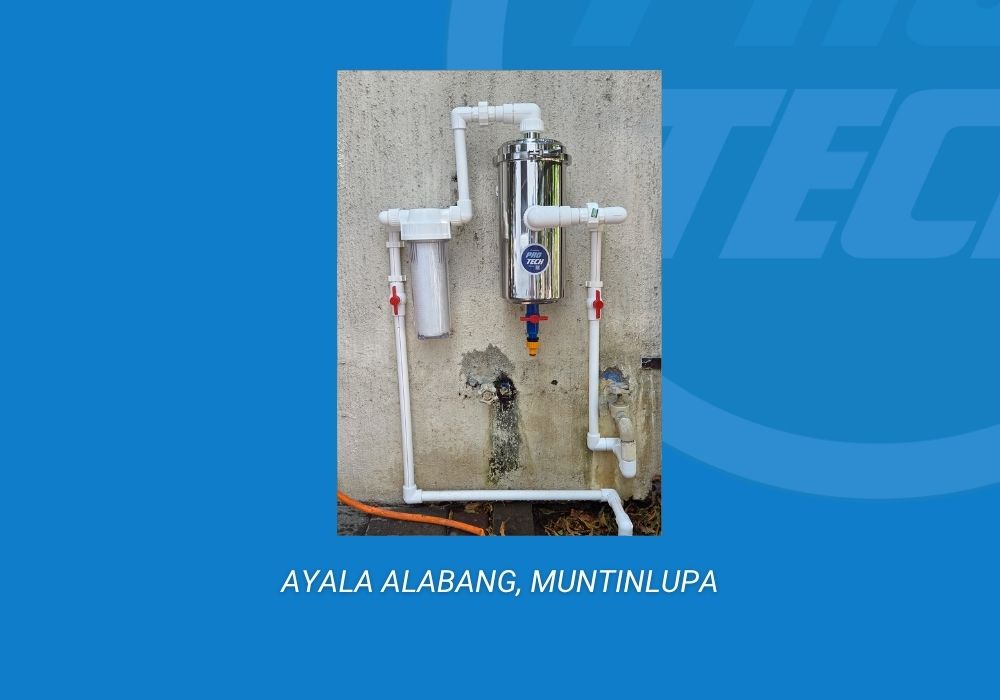

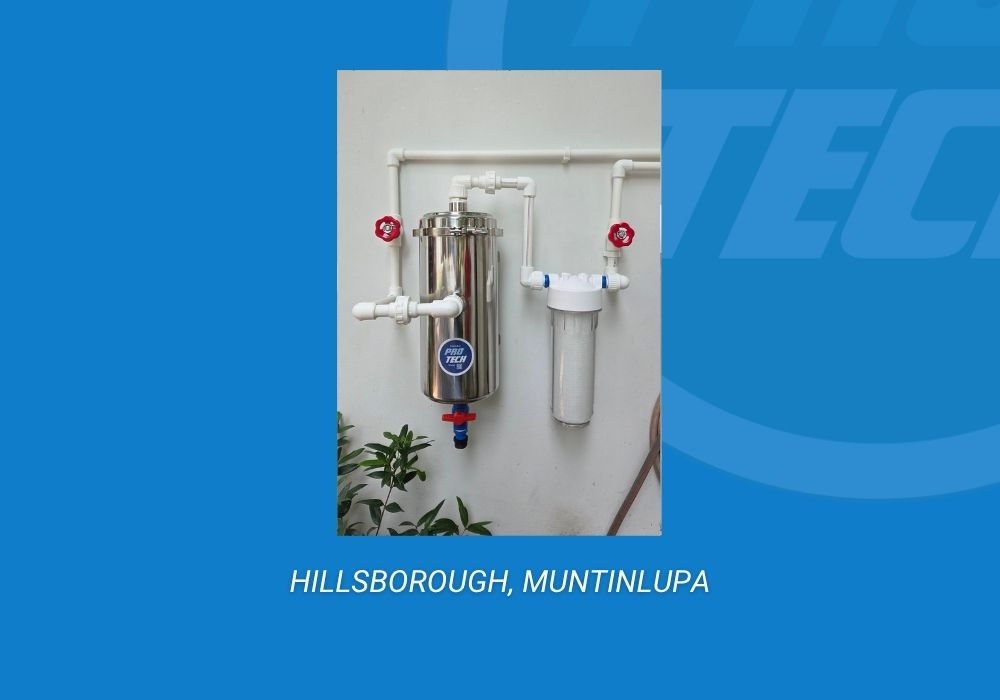

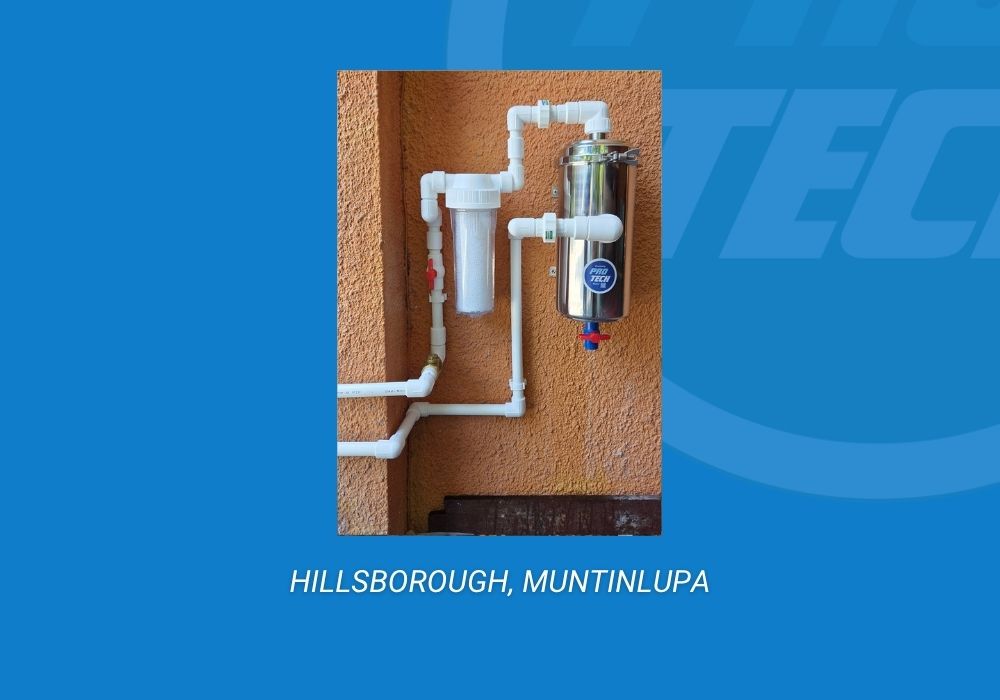

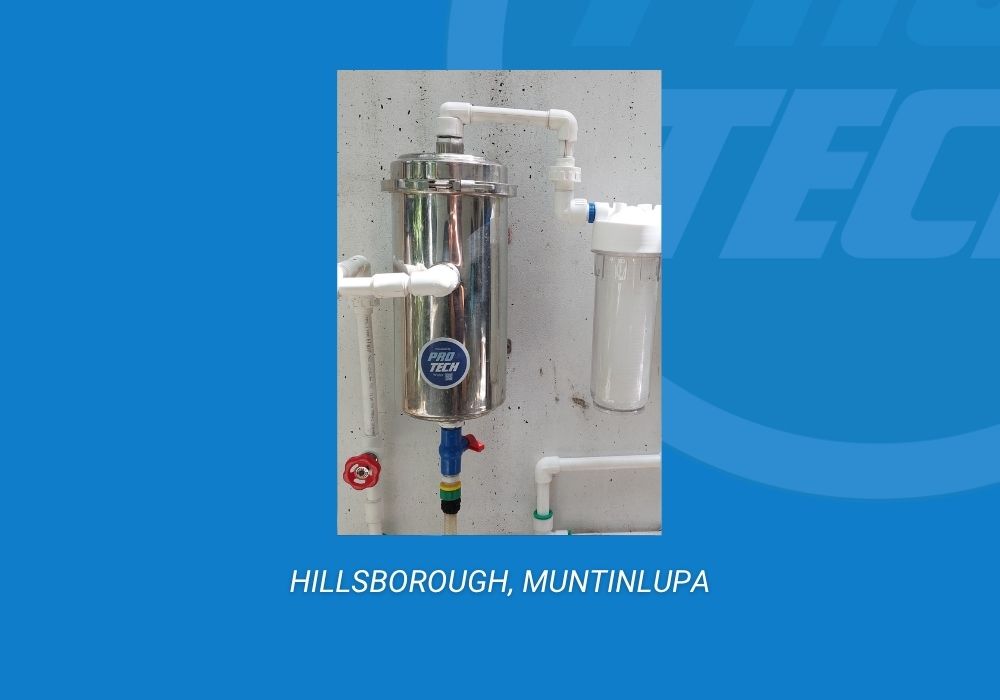

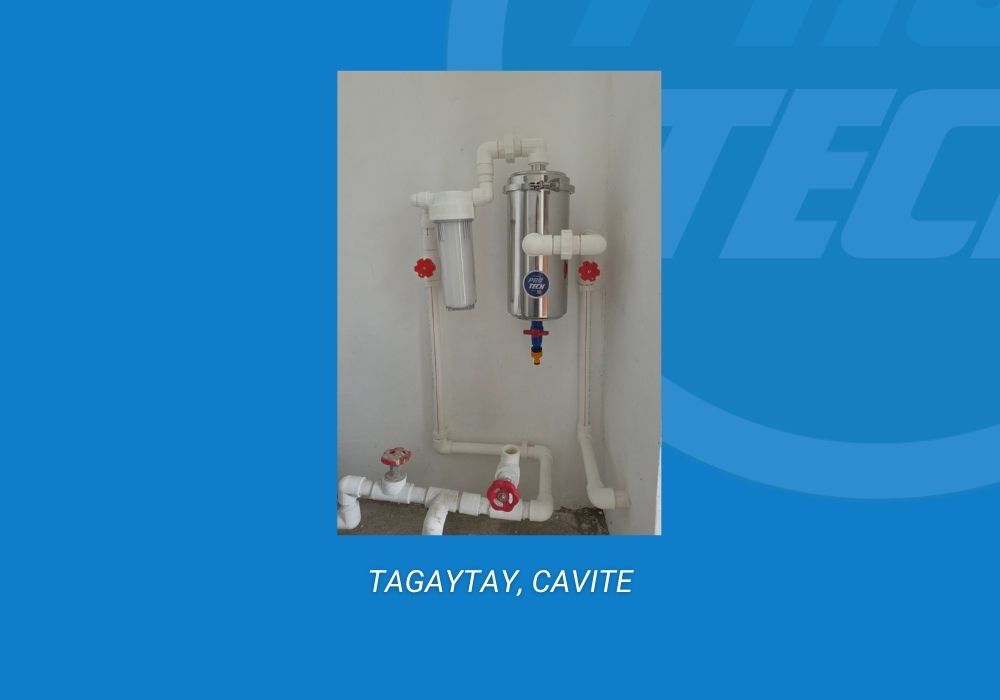

Installation Performance

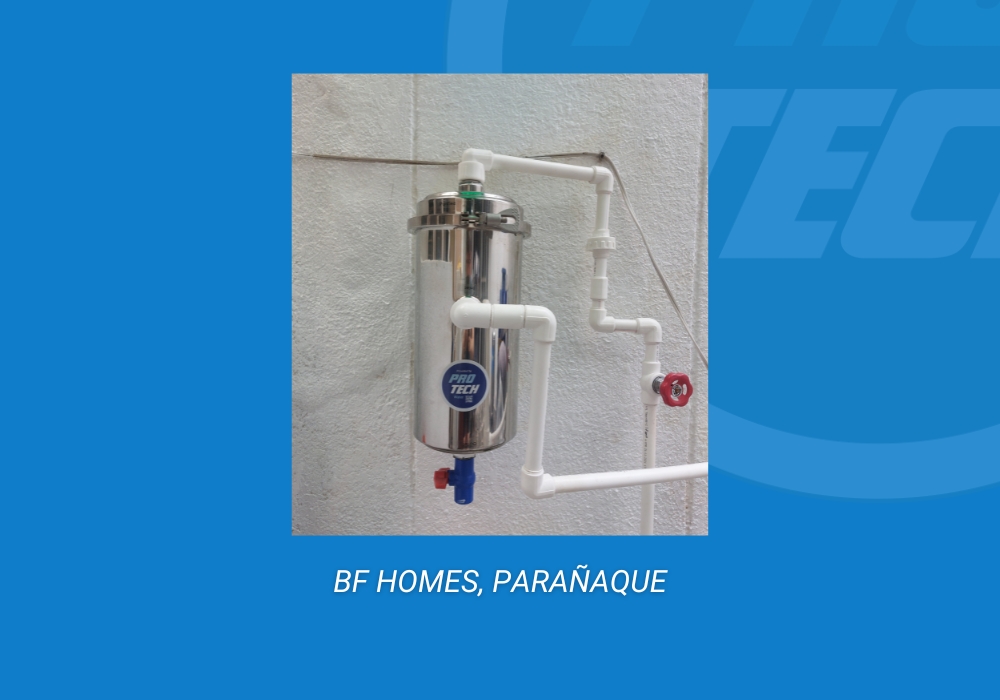

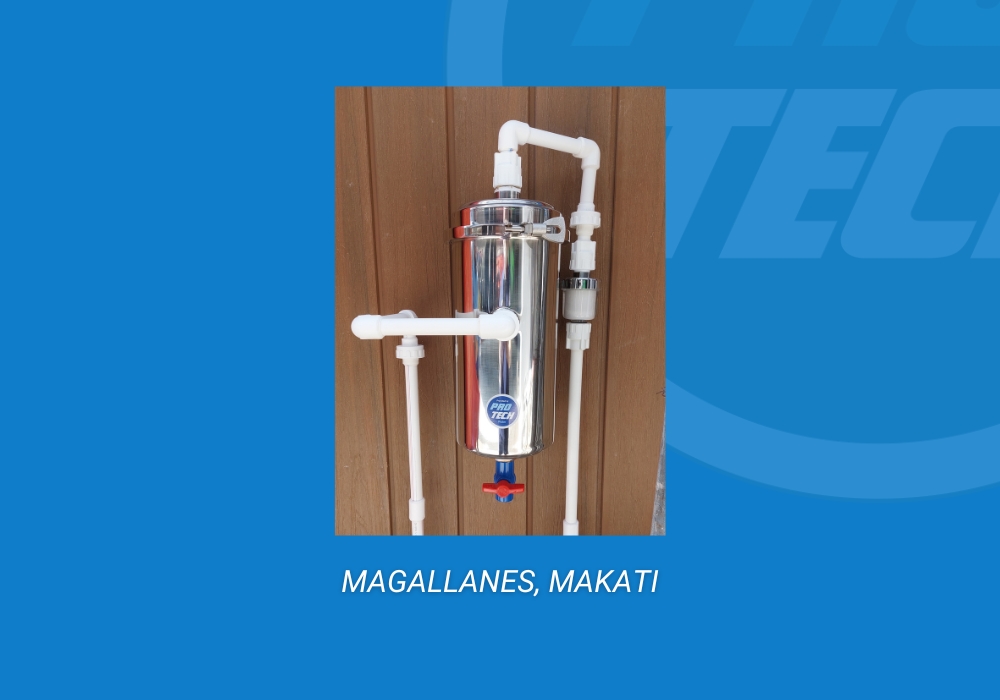

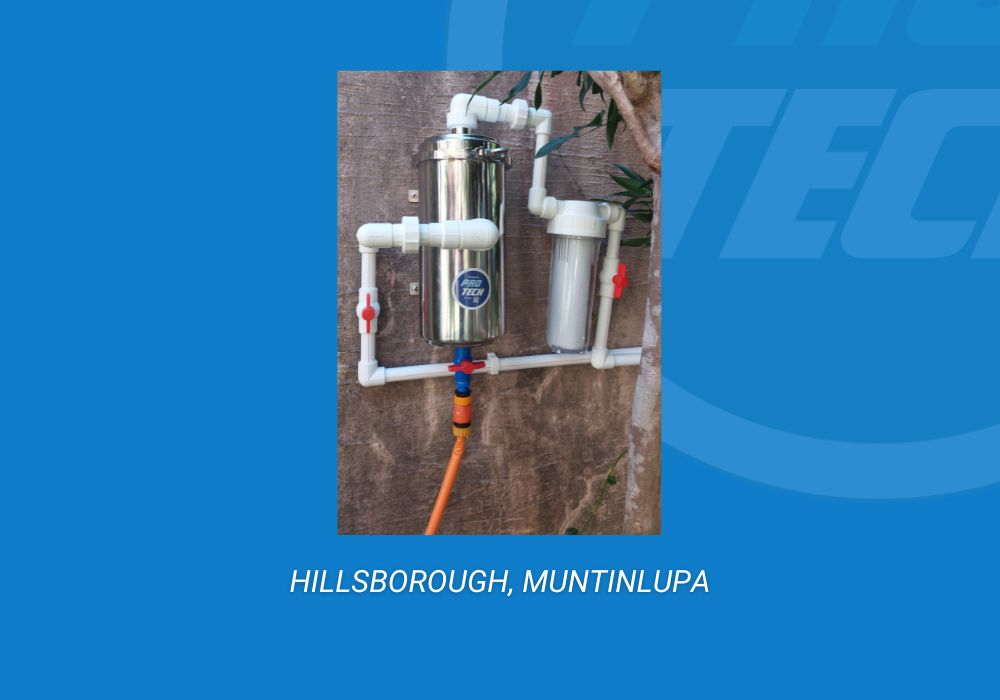

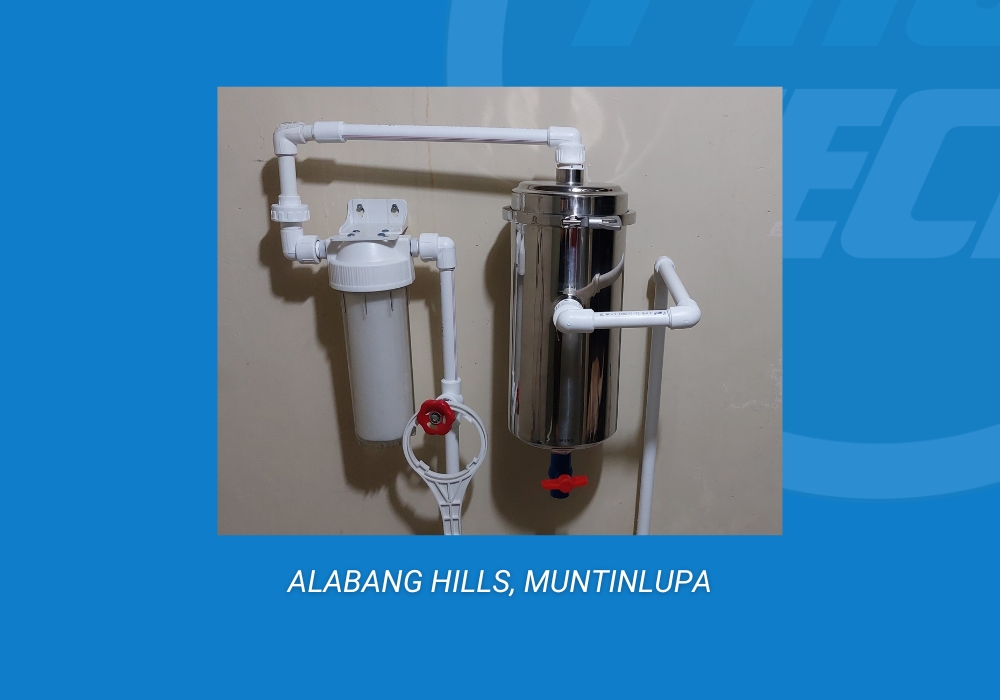

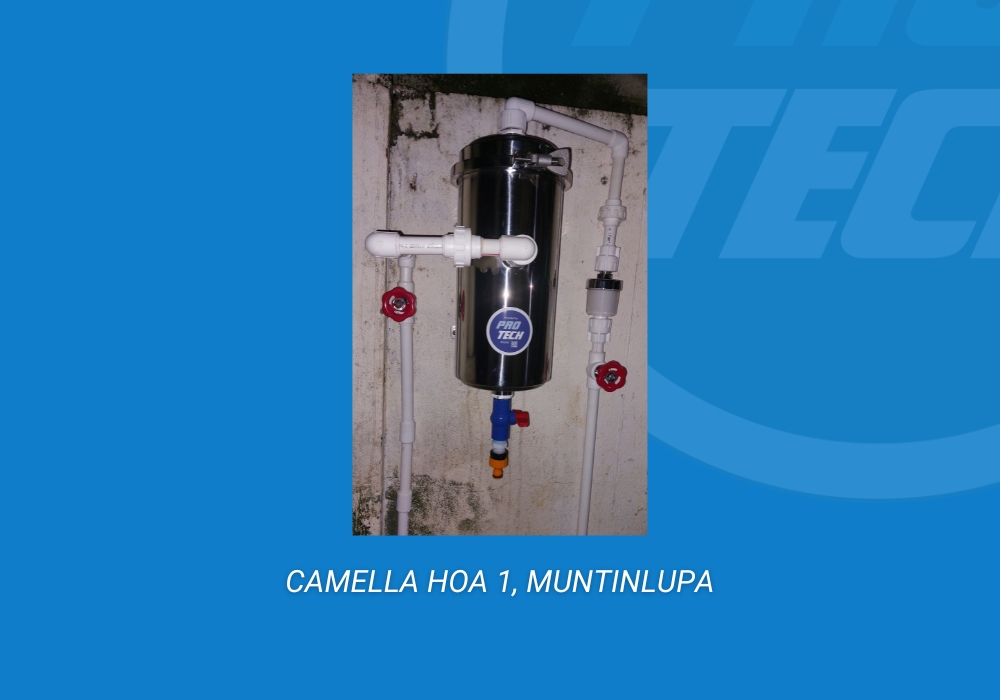

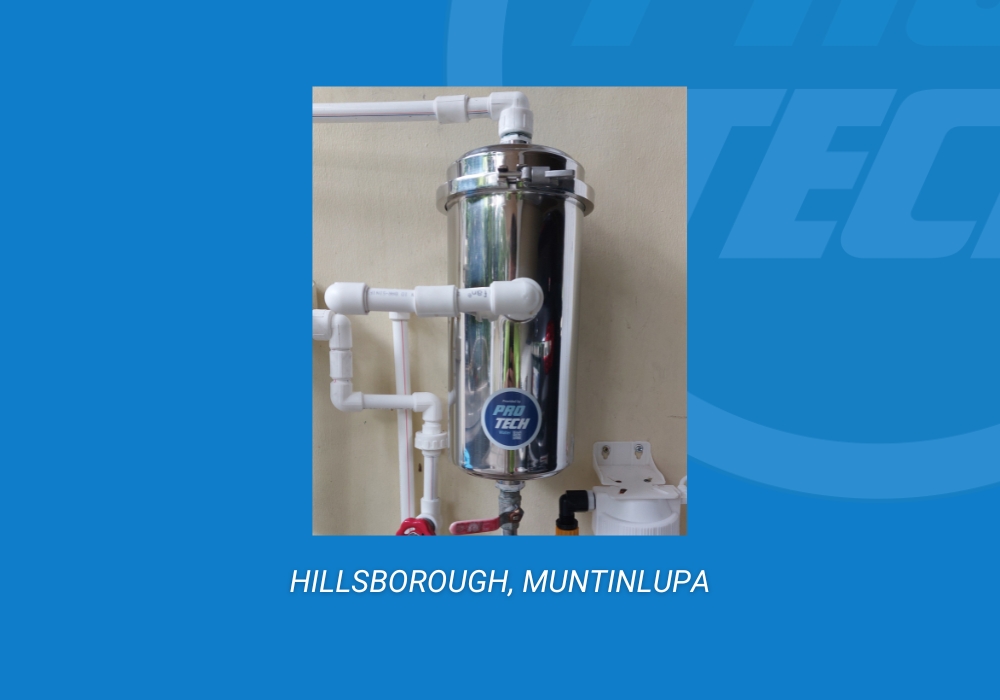

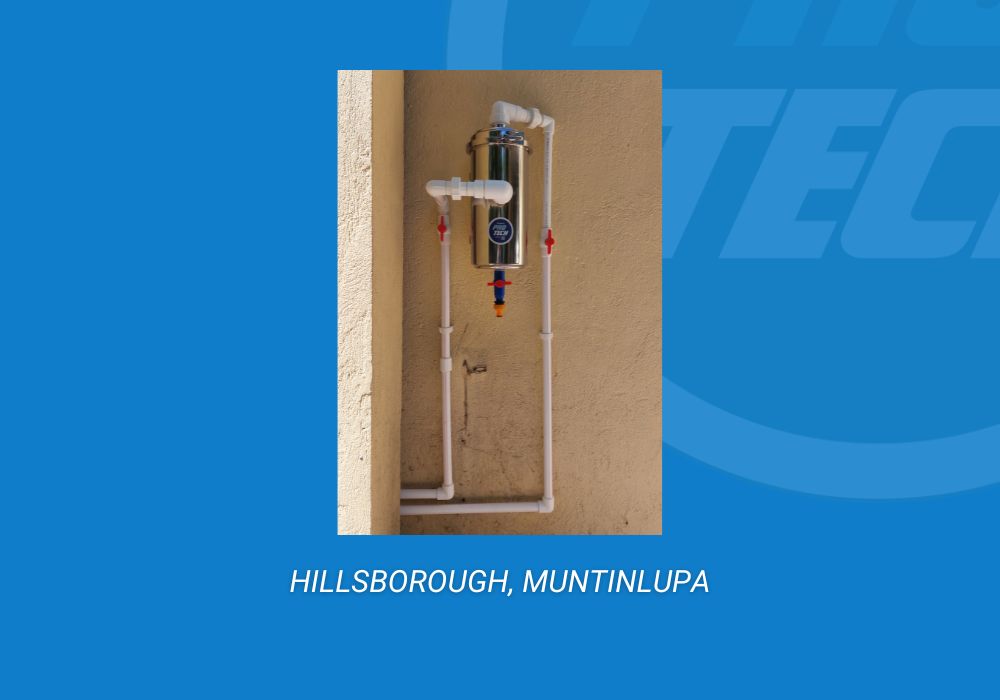

These are the photos of the site where our products have been installed so far.

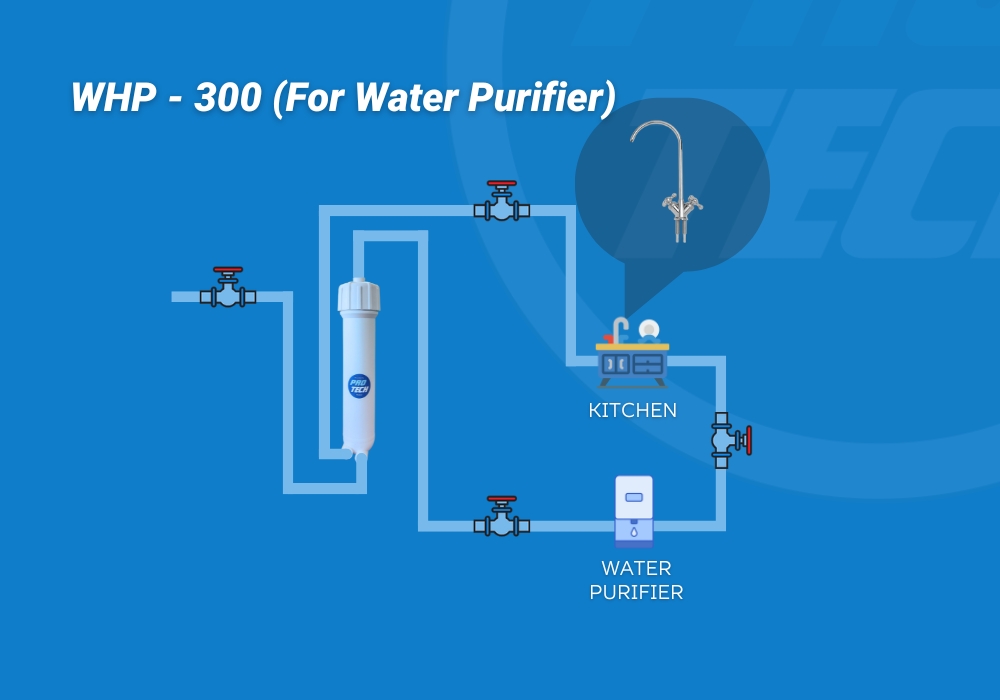

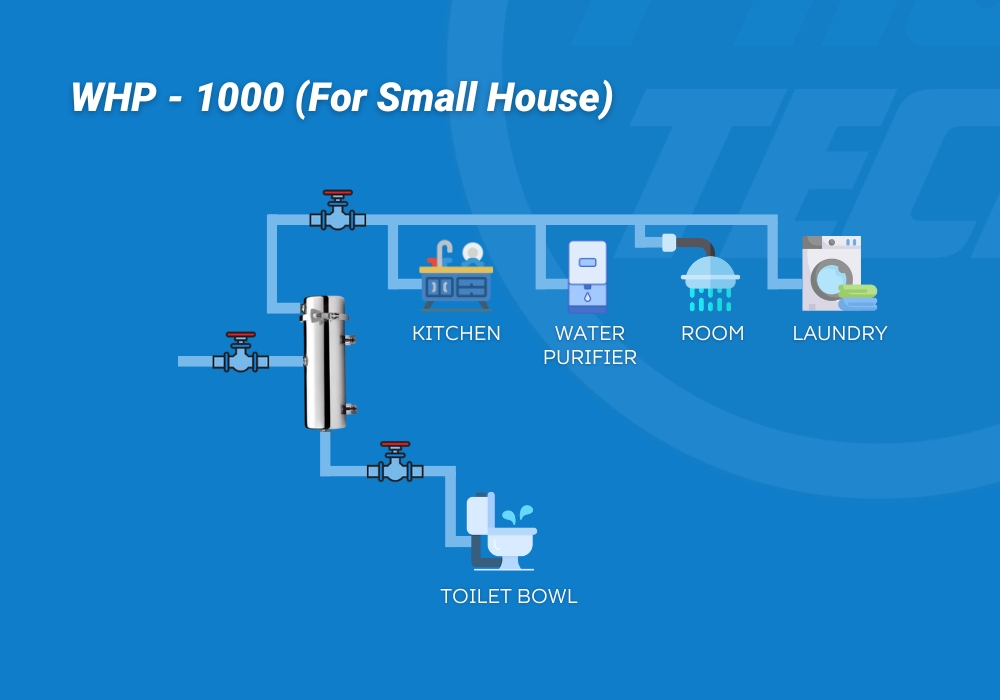

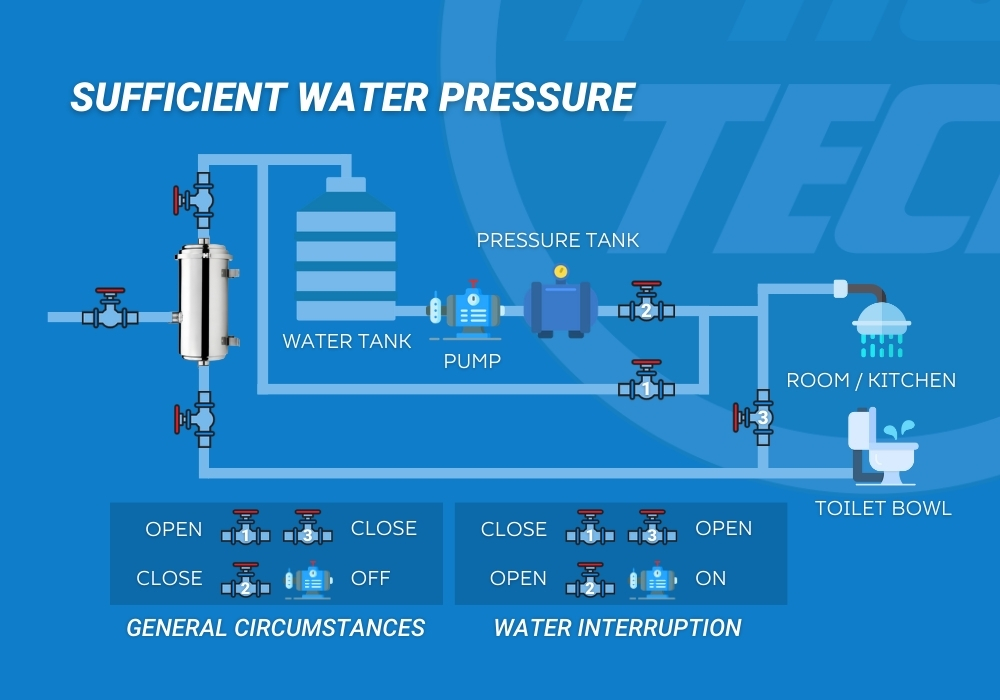

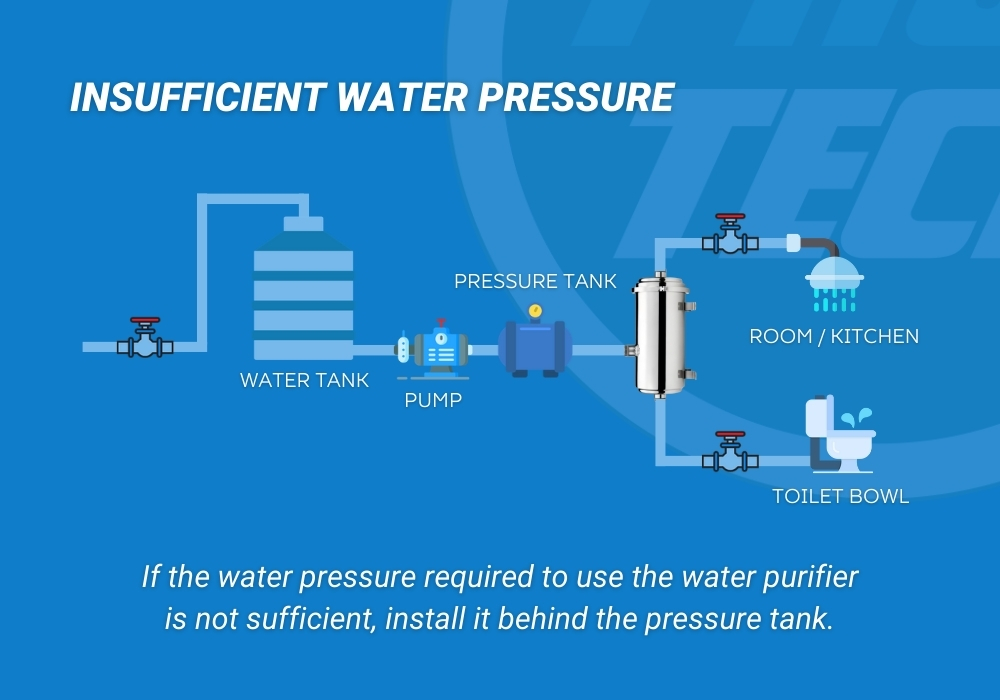

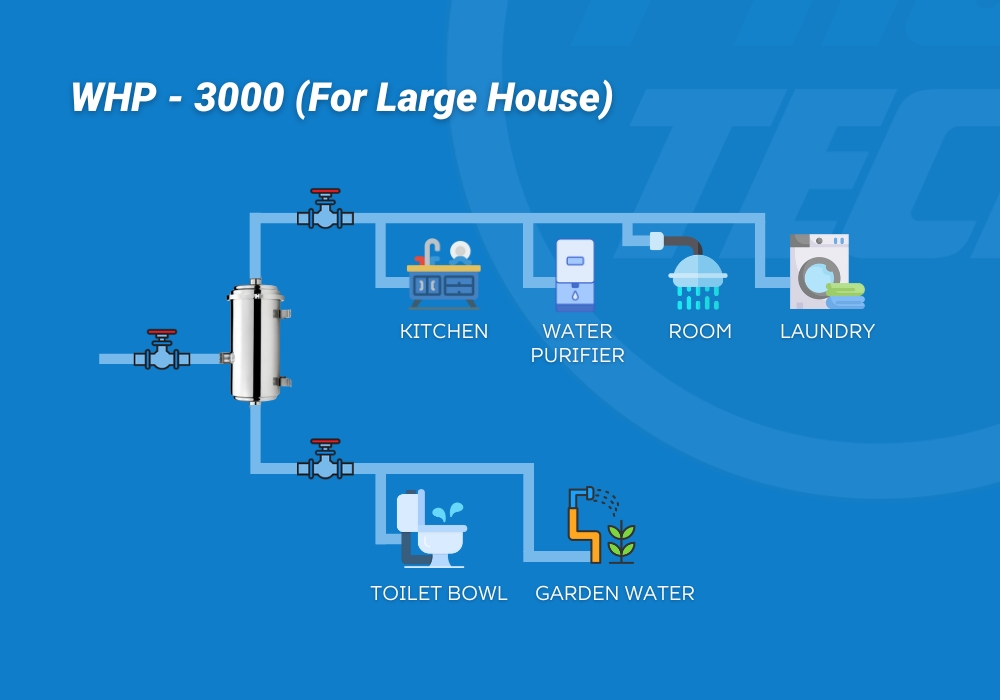

Installation Diagram
The type and installation location of the PVDF water purifier is determined by considering the purpose of use and the water pressure of the raw water supplied.
FAQ
A few things clients normally ask us about the PVDF Water Purifier.
Why is the tap water dirty?
- Water supplied from outside the house to the inside is the root cause.
- Soil and rust accumulated in the pressure tank for a long time.
- Rust and scale piled up inside old steel water pipes.
What if the filter gets clogged and the water pressure drops?
- We provide instructions on how to prevent the filter from clogging when installing our product.
- However, if the filter gets clogged and the water pressure decreases, please contact us for assistance with filter cleaning. The service fee is 1,000 pesos.
Can I drink the water that passed through the pvdf water purifier?
- The purpose of this water purifier is to enhance the quality of water supplied to homes and restaurants, bringing it up to the hygiene standards of advanced countries.
- The primary reason for using a drinking water purifier is to eliminate any remaining organic compounds and odors.
- It is recommended that you install a separate water purifier for drinking.
I'm using a drinking water purifier. Why does the drinking water smell?
- The first possible cause to consider is the low quality of the carbon filter.
- Filters containing a very small amount of powdered carbon are unable to effectively perform the primary function of carbon filters, which is to remove organic compounds and odors.
- In contrast, our carbon filter is made with a thick block design, which ensures excellent performance in removing organic compounds and unpleasant odors.
- Another important factor is that the tap water supplied to households is not suitable for drinking water purifiers, as it is not designed according to international standards.
- For this reason, filters at each stage, particularly the primary filter, cannot effectively remove impurities from the water, making it difficult to expect optimal performance.
- To safely use your current water purifier,
- we recommend installing our PVDF water purifier or replacing the primary filter with a PRE-UF filter, which will fundamentally improve the quality of the raw water entering the drinking water purifier.
- However, if you choose to address the issue without our products, the only solution would be to replace the filters frequently.
- For example, the standard in Korea is to replace the primary sediment filter every 3 to 4 months, but this is not suitable for the water conditions in the Philippines.
- Depending on the local water conditions, the replacement interval may vary, but generally, it should be replaced every 1 to 2 weeks.
Is there a warranty period for the product?
- The warranty period of the filter is one year.
- However, we are not responsible for any damage caused by the customer removing or cleaning the filter.
